Our M12 male connector provides a convenient and cost-effective way to connect wires and cables in the field without the need for specialized tools or equipment. These field wireable connecxtors are used to join two or more wires or cables together, providing a secure and reliable electrical connection. They are widely used in industrial and commercial applications where quick and reliable connections are required.
Mueller Electric’s M12 male connectors comply with IEC 61076-2-101 Industry 4.0. Our cables are RoHS 3 compliant and IP67 safety rated.

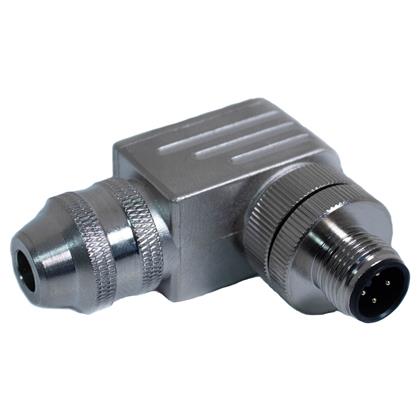

The M12 male connector configuration is made with various orientations available in straight and right angle orientations,18-22 and 22-26 AWG, and pin positions 3, 4, and 5. Coupling nut material is nickel-plated brass. Body material options is nickel-plated brass or nylon 66. Utilizes screw in connection for wires. A-code, 4-AMP with voltage rating 250V AC/DC for 3 and 4 pin positions and 60V AC/DC for 5 pin positions.
Mueller Electric’s M12 male connectors improve safety, increase productivity, and cut downtime. Our M12 field wireable connectors are made at our headquarters in Akron, OH USA and available with 5 to 10 days lead time. Contact Mueller for more information on our product line.
Connection Configuration
Male
Wire Gauge (AWG)
18-22
Shell Size
M12
Coding
A (Micro DC)
Number of Positions
4
Voltage
250 V AC/DC
Body Material
Shielded Nickel-Plated Brass
Cable Diameter
6mm-8mm
Degree Of Protection
IP67
Standards / Regulations
IEC 61076-2-101
Orientation
Right Angle
RoHS Compliant
3 Compliant
