Solenoid Valve Cable Assembly

Home Products Instrumentation Cables Solenoid Valve Cable Assembly
Solenoid Valve Cable Assembly

Ask A Question

about BU-10004930

Description

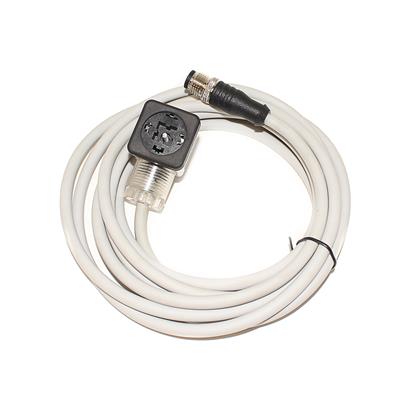

Solenoid Valve Cable Assembly

• Mueller’s BU-10004930 is a solenoid valve cable assembly using a 1/2"-20UNF “C” Coding 3 Pin Male connector to Valve Type A.

• Wire: 18 AWG, 3 Conductor, Gray PVC, -40°C to 105°C

  Overall length = 118” (3000mm)

• General Information:

  Standard: IEC 61076-2-101

  Connector Body: TPU

  Contacts: Brass with Gold plating

  Connector Locking System: Screw-Locking

  Waterproof Rating: IP67

• Electrical Information:

   Rating Voltage: 24-48 VAC/DC

  Insulation Resistance: >100MΩ

  Rating Current: 4A

  Contact Resistance: < 5mΩ

• RoHS 3 Compliant

Model #: BU-10004930
Category: Instrumentation Cables
Data Files:
DS-BU-10004930.pdf

Product Details

Type
Cordset
Shell Size
1/2"-20UNF
Rating
Waterproof Rating IP67
Rohs Compliant
Yes
