The SMA flange mount connector operates as a jack receptacle that bridges communications between external cables into an internal electronic system. This specific mounting feature enhances the stability of an assembly even in the most rugged industrial conditions through a bolt-on application. The added layer of security prevents disconnections from vibrations or other outside interferences. System applications for this component include radio frequency testing equipment, antenna interfaces, radar systems, GPS devices, and telecommunications functions.
Part of the advantages in implementing SMA flange mount connectors is their compact footprint, making them well-suited for tight spaces and devices without increasing the weight of systems. SMA connectors, in particular, are engineered for precision. Threaded coupling locks cable connections to selected interfaces without premature loosening or unintentional disconnections.

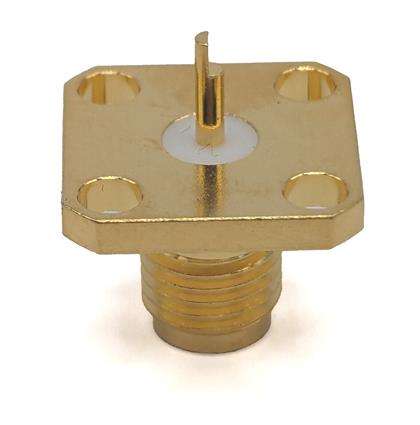

The defining feature of the SMA flange mount connector is its four-hole, rigid mounting design. Fashioned in a gold-plated rectangle, the mount portion rests flat against a device or enclosure for balanced anchoring. The center pin enables the transmission of radio frequency signals.
Designed to mount on 0.062-inch circuit boards, the SMA flange mount connector jack receptacle can facilitate frequencies ranging from DC to 18 gigahertz. Connector impedance stands at 50 Ohms with constant resistance rated at three milliohms. The lifespan of this connector can achieve a minimum of 500 mating cycles. Peak operation can be maintained in temperatures ranging from -65℃ (-85℉) to 165℃ (329℉).
Mueller Electric provides high-quality, reliable, and cost-effective electrical components and cable assemblies to industries like military and defense, aerospace and transportation, batteries, substation maintenance, and others. We leverage more than a century of expertise to curate a specialty inventory of more than 2,000 products, including the SMA flange mount connector.
Contact Mueller Electric today to place an order for this SMA flange mount connector or to discuss additional project components.
