Mueller Electric has been a leading supplier in electrical instrumentation for more than a century. We engineer and provide a broad spectrum of high-quality, durable products including instrumentation cables, connectors, junction boxes, clips, and custom assemblies. The RF coaxial connector and assembly with an RG-316 cable with straight SMB male connectors is one of more than 2,000 best-in-class products available in the Mueller Electric inventory, which services industries such as aerospace and transportation, batteries, factory automation, medical, military and defense, paint grounding, and others.

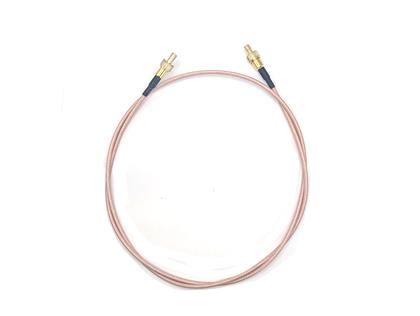

This specific assembly, consisting of two SMB male connectors that are linked using an RG-316 cable, transmits high-frequency radio wave signals between different devices. Its most common applications include wireless communications such as WiFi and antennas, automotive applications such as GPS and satellite radio, medical equipment such as diagnostic imagery, and IoT and embedded systems.
The RG-316 cable connecting the SMB male connectors arrives in a thin diameter for extra flexibility within various applications. Designed with shielding, this cable balances dexterity with durability by leveraging internal conductivity braiding with a protective layer. In relation to this RF coaxial connector and assembly, the RG-316 is available in lengths of six-, 12-, 18-, 24-, and 36-inches as well as one-meter and 500- and 750-millimeter lengths.
SMB male connectors are gold-plated for enhanced conductivity and resistance to corrosion. When paired with an RG-316 cable, SMB male plugs protect signal integrity through their snap-on coupling and compact design. These connectors can facilitate frequencies up to DC-4 gigahertz, depending on the cable size, and can perform in temperatures ranging from -65℃ (-85℉) to 150℃ (302℉).
Contact Mueller Electric today to place an order for this RF coaxial connector and cable with an SMB male to SMB male connector with an RG-316 cable in addition to RG-316DS and RG-174 cable options or to discuss additional project components.
