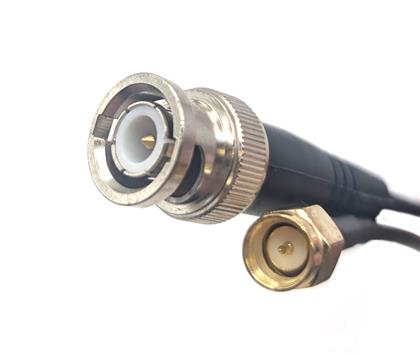

RF Coaxial Connector & Cable Assembly, BNC Male to SMA Male, RG-174

The RF coaxial connector and cable assembly is comprised of a BNC male to SMA male connector through an RG-174 cable. Its configuration makes this electrical system highly versatile and compatible across a variety of applications, especially when bridging connections between connector types. The BNC male to SMA male RG-174 system is engineered for the reliable, fast, and secure signal transmission of radio frequencies.

BNC male connectors are designed in a bayonet-style for easy connections and disconnections. This lock mechanism makes this style of connector well-suited for testing equipment and broadcast systems. The other end-point encompasses a standard SMA male plug to augment the system’s security with its vibration-resistant performance.

This BNC male to SMA male assembly relies on an RG-174 cable. These pliable wires are extremely effective for working in tight spaces. Based on its smaller diameter, it can also reduce bulk in portable devices and other electronic assemblies. The RF coaxial connector and cable assembly can operate up to a frequency of one gigahertz and carries a connector impedance of 50 Ohms. The RG-174 cable is available in lengths of 36-, 60-, and 120-inches as well as one- and two- meters and 500-millimeters.

Mueller Electric has been a leading manufacturer of electrical parts and systems for more than a century. The RF coaxial connector and cable assembly with a BNC male to SMA male end-points connected by an RG-174 is one of 2,000 products that mirror our commitment to innovative, high-quality, and cost-effective solutions. This robust inventory services a broad spectrum of industries including aerospace and transportation, batteries, factory automation, substation maintenance, and much more.

Contact Mueller Electric today to place an order for this RF coaxial connector and cable assembly with a BNC male to SMA male with an RG-174 cable. Additional options include an RG-316 cable.
