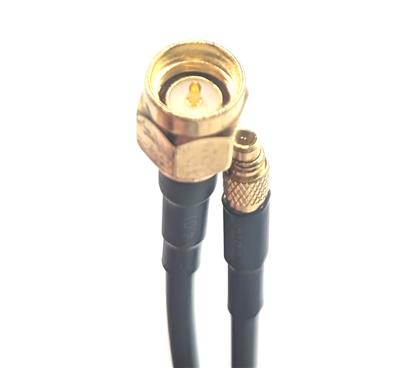

The RF coaxial connector and cable assembly facilitates a connection between an SMA male to an MMCX male plug through an RG-174 cable. This assembly style is engineered to bridge radio frequencies between different interfaces, specifically compact modules to extensive external systems. The combination of a smaller, thinner cable makes for an efficient use of space while ensuring a reliable connection for moderate ranging frequencies. Common applications of SMA to MMCX cables include embedded radio frequency systems in IoT devices, wireless communications, GPS/GNSS systems, and testing and prototyping industries.
Due to its threaded mechanism, SMA male connectors are well-suited for high-frequency transmission with minimal opportunity for disconnections or loss of signal. This style connector also brings low signal reflection, allowing for a strong connector impedance of 50 Ohms. The MMCX male plug maintains a small footprint for compact electronics. Its snap-on interface also eases the ability to connect and disconnect components for maintenance or reconfigurations.
The RG-174 cable compliments the SMA to MMCX end-points by adding to the assembly’s overall dexterity. The slim design makes placement seamless and adjustment without jeopardizing signal integrity. Though lean in design, these cables involve a shielded design, which preserves signals through two carefully curated layers — one a conductive carrier and another as a protective barrier. Mueller Electric supplies the RG-174 cable in lengths of six-, 12-, 24-, 36-, and 60-inches, and one-meter, and 75-, 200-, and 500-millimeters.
The SMA to MMCX cable assembly is one of Mueller Electric’s 2,000 OEM products and systems. Along with our high-quality, reliable, and durable offerings, we also provide solutions customized to your particular application.
Contact Mueller Electric today to place an order for this RF coaxial connector and cable assembly facilitating a connection between an SMA male to an MMCX male plug through an RG-174 cable. Additional options include an RG-316 cable.
