Description

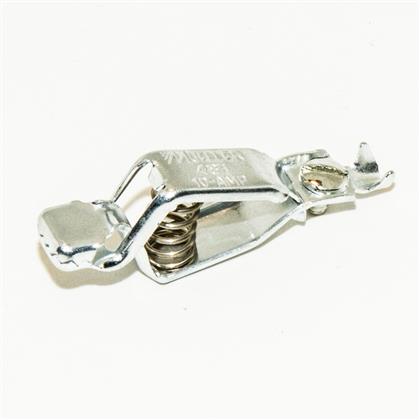

The BU-48B-ZZLZ is a zinc-plated steel, automotive analyzer clip which has lower spring force than BU-48B. Connects to wire up to 14 AWG via crimp or included screw connection.
Model #:
BU-48B-ZZLZ
Category:
Clips
Weight:
6.8 g
Dimensions:
L: 51.308 MM
W: 9.652 MM
H: 17.78 MM
Data Files:
DS-BU-48B.pdf
Product Details
Plating Material
Zinc
Clip Length
2.01 to 2.5 (IN)
Clip Material
Steel
Amps
10
Jaw Opening
.44 to .62 (IN)
Clip Form
Compression Spring
Wire Connection
Crimp/Screw
Wire Gauge (AWG)
14
RoHS Compliant
3 Compliant
