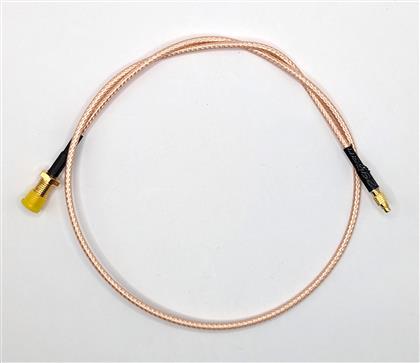

The RF coaxial connector and cable assembly consists of an MMCX male to SMA female connector using an RG-316. Together, these components perform with an emphasis on precision, bringing flexibility and compact-footprints to meticulous electrical transmissions. This particular system is most commonly used in tracking technologies such as GPS and GNSS modules, embedded radio frequency devices, wireless communications, aerospace applications, and remote antenna equipment.
MMCX male connectors are designed to accommodate miniaturized applications. Mueller Electric has incorporated a gold-plated version, complete with Polytetrafluoroethylene/Teflon insulation. These details enhance the conductivity, corrosion resistance, and signal integrity of the system. The MMCX male connects to an SMA female, a popular port selection for high frequency radio waves. The threaded coupling mechanism ensures a secure connection for guaranteed signal integrity for sensitive electrical applications. Both connectors maintain an impedance of 50 Ohms and can facilitate frequencies ranging from zero to three gigahertz.
The RG-316 cable compliments the connectors through its immense flexibility, allowing for easy maneuvering across a variety of spaces and applications. In addition, this shielded cable is comprised of conductive wiring followed by a protective layer. Mueller Electric provides this RF coaxial connector and cable assembly with an MMCX male to SMA female connector in a length of five meters. RG-316 cables maintain peak performance capabilities across a temperatures spanning -65℃ (-85℉) to 150℃ (302℉).
Mueller Electric has been supplying OEM parts and electrical equipment for more than a century. Our industry expertise carries across an inventory of more than 2,000 high-quality, durable components and custom assemblies. We service a multitude of industries such as transportation, batteries, factory automation, substation maintenance, and many others.
Contact Mueller Electric today to place an order for this RF coaxial connector and cable assembly with an MMCX male to SMA female connector using an RG-316 cable with a five-meter diameter. Additional cable options, including RG-316DS, RG-142, RG-174, RG-086 and RG-58, and various connectors are available for your specific system.
