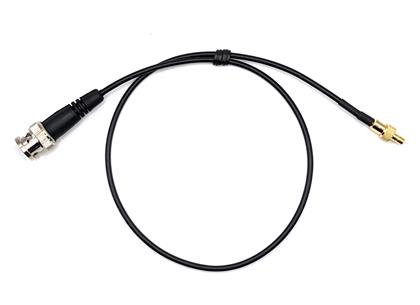

Mueller Electric leads the electrical and electronic instrumentation industry with products that prioritize quality, durability, and reliability. We leverage our knowledge to serve a wide range of industries, including aerospace, batteries, medical, military defense, substation maintenance, and testing and measurement. With more than a century of expertise, Mueller maintains a limitless inventory of clips, cables, wires, and complete systems like this RF coaxial connector and cable assembly with SMB to BNC cable connectors, outfitted using an RG-174.
SMB male connectors are an ideal selection for accommodating electrical needs within compact spaces. With a small footprint, this component offers seamless maneuverability without increasing the potential for strains in performance. SMB connectors utilize snap-on coupling for effortless installations and removals. These specific SMB male to BNC cable end points are fashioned with gold-plating for corrosion resistance and enhanced conductivity as well as Polytetrafluoroethylene/Teflon insulation to protect signal integrity.
The accompanying BNC male connector pairs perfectly with a BNC female port. Using a bayonet-style locking mechanism, these connectors create a stable connection that prevents signal disruptions as a result of disconnections. The balance of security and ease-of-use make them a popular choice for lab and field measurement applications.
The SMB to BNC cable connectors are linked using an RG-174. This cable style powers the assembly’s nimble performance. Thin in diameter and pliable, this component fits in compact devices without adding unnecessary weight. Common implementation includes portable electronics, and aerospace and drone technologies.
Mueller Electric offers this cable assembly in half- and one-meter lengths. Both connectors deliver a connector impedance of 50 Ohms and can facilitate frequencies up to three gigahertz. Operation is maintained across temperatures ranging from -30℃ (-22℉) to 70℃ (158℉).
Contact Mueller Electric today to place an order for this RF coaxial connector and cable with an SMB to BNC cable connector, linked with an RG-174. Additional options include RG-316, RG-316DS, RG-142, RG-58, and RG-086 cable with various connectors.
