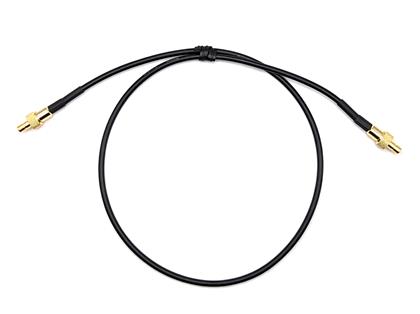

The RF coaxial connector and cable assembly consists of an SMB male to SMB male connector through an RG-174 cable. The matching connectors give you the ability to pair SMB female ports to either end point. The complete assembly leaves a small footprint, making it an ideal choice for compact applications. The cable component enhances these end-uses by providing a significant degree of flexibility that is especially helpful in testing and prototyping, wireless communications, and embedded systems.
SMB to SMB male cable connectors reduce bulk in systems with their minimal footprint. Compared to other interfaces, this component utilizes snap-on coupling for quick installations and removals without additional twisting or threading. Both SMB male end points are gold-plated to enhance conductivity and corrosion resistance. They are also engineered with Polytetrafluoroethylene/Teflon insulation to ensure radio frequency quality.
This RF coaxial connector and cable assembly is designed with an RG-174 cable. When paired with the SMB to SMB cable connectors, an RG-174 accentuates the system’s overall dexterity when routing components through narrow spaces. The cable is engineered with shielding, which includes a braided interior for conductivity followed by an additional protective layer that protects radio frequencies from leakage or external interference.
Together, the cable assembly maintains a connector impedance of 50 Ohms and can facilitate radio frequencies up to three gigahertz. The RF coaxial connector and cable assembly maintain peak operational quality in temperatures from -30℃ (-22℉) to 70℃ (158℉). Mueller Electric can supply the SMB to SMB cable system in lengths of 0.3-, 0.5-, and one-meter cables.
Contact Mueller Electric today to place an order for this RF coaxial connector and cable with an SMB male to SMB male connectors, linked with an RG-174cable. Additional options include RG-316, RG-316DS, RG-142, RG-58, and RG-086 cables with various connectors available.
