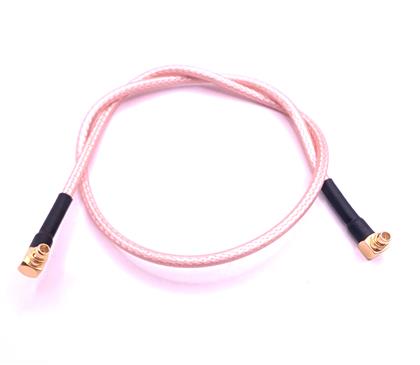

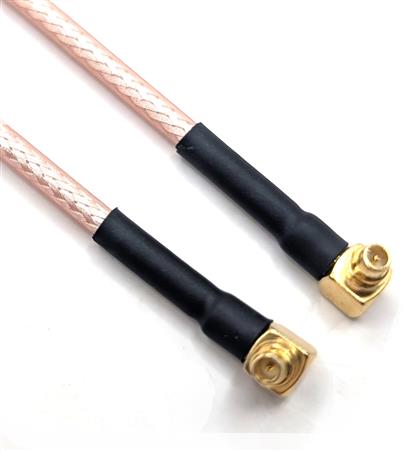

The RF coaxial connector and cable assembly is designed with MMCX to MMCX cable connectors featuring a snap-on interface. Together, these components work in tandem to reduce external disruptions, preserve signal transmission, and mechanical durability.
Compared to other components, MMCX connectors are designed to leave a small footprint. This characteristic makes them suitable for transmitting radio frequencies within compact devices such as wearable technologies, mobile devices, GPS modules, and more. Another distinguishing feature is the MMCX connector’s ability to rotate 360 degrees while attached to other interfaces, reducing strain on cables and preventing signal interference. Gold-plating ensures both end points optimize transmission efficiency and resist potential corrosion.
The MMCX to MMCX cable connectors are linked using an RG-316. Its thin diameter maximizes the system’s dexterity for an enhanced and reliable performance in tighter applications. RG-316 cables balance pliability with security through their specially engineered shielding design, which include an internal layer of conductive, braided wire covered with an additional protective layer of Polytetrafluoroethylene/Teflon.
Mueller Electric supplies the RF coaxial connector and cable assembly, complete with MMCX to MMCX cable connectors, with RG-316 cables in various lengths, including six-, 12-, 18-, and 24-inches. Depending on the size of the cable length, it can facilitate radio frequencies up to six gigahertz with a connector impedance of 50 Ohms. The assembly can also perform amid extreme temperatures ranging from -65℃ (-85℉) to 165℃ (329℉).
Electrical instrumentation plays an integral role in the daily operations of nearly every industry. For more than a century, Mueller Electric has been a leading manufacturer and supplier of OEM parts and custom assembly systems designed to provide high-quality, reliable solutions in aerospace, batteries, factory automation, substation maintenance, and other industries.
Contact Mueller Electric today to place an order for this RF coaxial connector and cable with MMCX to MMCX connectors and an RG-316 cable in addition to RG-316DS, RG-174, RG-142, RG-58, and RG-086 and various connectors or to discuss additional project components.
